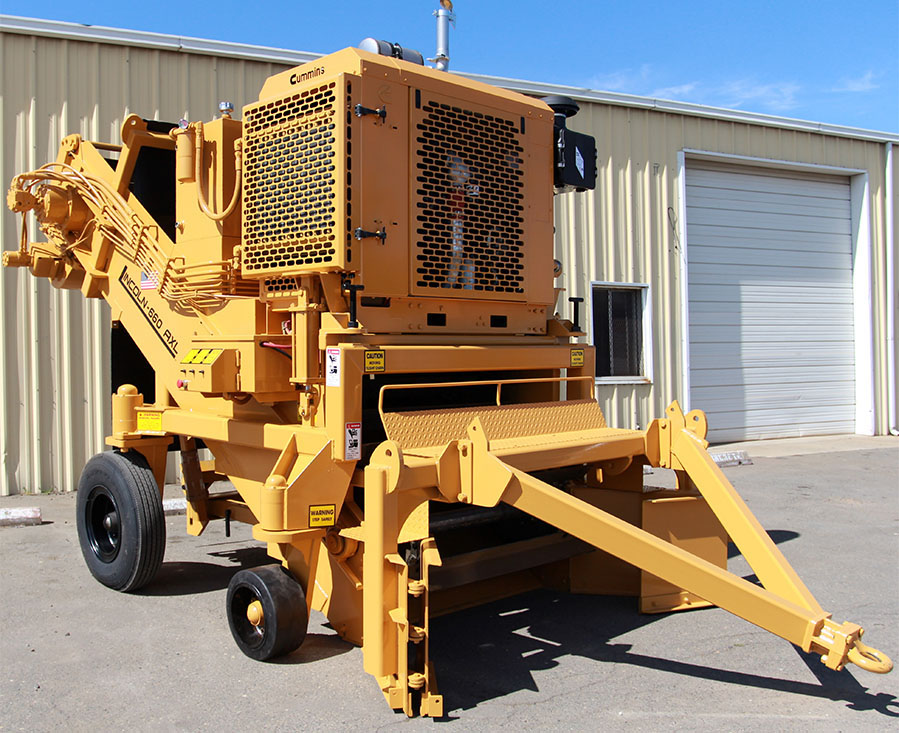

LINCOLN 660AXL Windrow Elevator

The Lincoln Windrow Elevator with our patented remixing auger provides a continuous flow of material that reblends asphalt just before entering the hopper eliminating segregation and ensuring a uniform mix temperature. Our unique product increases production and improves material handling reducing costs.

Download Spec Sheet
  • Cummins Tier 4(i) 6 Cylinder 173 hp Diesel Engine
  • Manual Telescope Hookup
  • Manual Tow Bar and Side Rack Adjusting Screws
  • 80 gal. Fuel Tank – 55 gal. Hydraulic Oil Reservoir
  • Bolt on Hydraulic Heat Exchanger (stationary)
  • Proven Reliable Design
  • Hydrostatic drive system
  • 60” wide – high capacity slat conveyor
  • Patented remix auger that eliminates segregation
  • Auger chamber opens for cleaning and maintenance
  • 72” discharge height for full hopper load
  • High speed raise and lower
  • Rear wheel width designed for trailer loading
  • Hydraulic telescoping paver attachment eases hookup

Lincoln 660 AXL

ENGINE

  • Cummins – Tier 4(i) 6 Cylinder Diesel Engine*
  • 173 hp @ 2400 RPM
  • 80-gallon fuel tank – 55-gallon Hydraulic Oil Reservoir
  • Manual Telescope Hook Up
  • Manual Tow Bar and Side Rack Adjusting Screws

ELEVATING CONVEYOR

  • Conveyor start up warning alarm
  • 60” wide throat
  • 72” discharge height
  • Heavy duty roller flight chain
  • Heat treated flight wear edges
  • Replaceable hardened floor liner
  • High carbon alloy cutting edges (adjustable)
  • Heavy duty head and tail shafts with heavy duty bearings
  • Reversible elevator to clear obstructions

REMIXING AUGER

  • 14” diameter cast Ni-Hard replaceable segments
  • Left and right-hand segments feed to the center for remixing
  • Hydraulic motors coupled to auger shaft
  • Forward/Reverse Control

PAVER ATTACHING ADAPTOR

  • Hydraulic telescoping paver attachment (Quickie Hook)
  • Adjustable up to 24” with hydraulic cylinder to position dump point
  • Fully extended to hook up paver then retract to operating position
  • Adapter fits most pavers

SUSPENSION

  • Four wheels have heavy duty caster assemblies
  • Two 8.25 x 15-18 ply pneumatic rear tires
  • Two 16.25 x 11.25 x 8 solid rubber front tires
  • Swing up towing frame with pintle ring
  • Rear casters pin for towing

CONTROLS

  • Engine instrumentation (ground level)
  • Hydraulic telescoping paver attachment (left-side)
  • Auger on/Reverse – (Left side)
  • Auger trough hydraulic lift (easy clean out) (left-side)
  • Control panels on both sides of the machine include:
  • Conveyor start up warning alarm
  • Emergency Stop
  • Engine increase/decrease
  • Pump increase/decrease
  • Cylinders up/down

HYDRAULIC DRIVE SYSTEM

Variable displacement pump is directly connected to the engines and drives two fixed displacement hydraulic motors with planetary gear boxes directly connected to conveyor head shaft. Auxiliary mounted gear pump drives Quickie hook, lift cylinders, and auger lift. Piggy Back Pump drives remix auger and auger flight. 55-gallon reservoir with large capacity heat exchanger.

HYDRAULIC LIFT SYSTEM

  • High speed raise and lower to clear obstructions
  • 10” clearance in up position
  • Left and right height locking screws (manual)

DIMENSIONS

  • Length (with wings folded in): 14’- 6”
  • Height: 9’ – 10.5”
  • Travel width: 8’ x 5”
  • Rear Tire width outside of tread: 7’ – 11”
  • Front tire width outside tread: 7’ – 11”
  • Operating width: 10’ – 0”
  • Weight: 16,000 lbs.

Tier 4 Final Engine available as an option effective January 1, 2017

Design and specifications subject to change without notice
